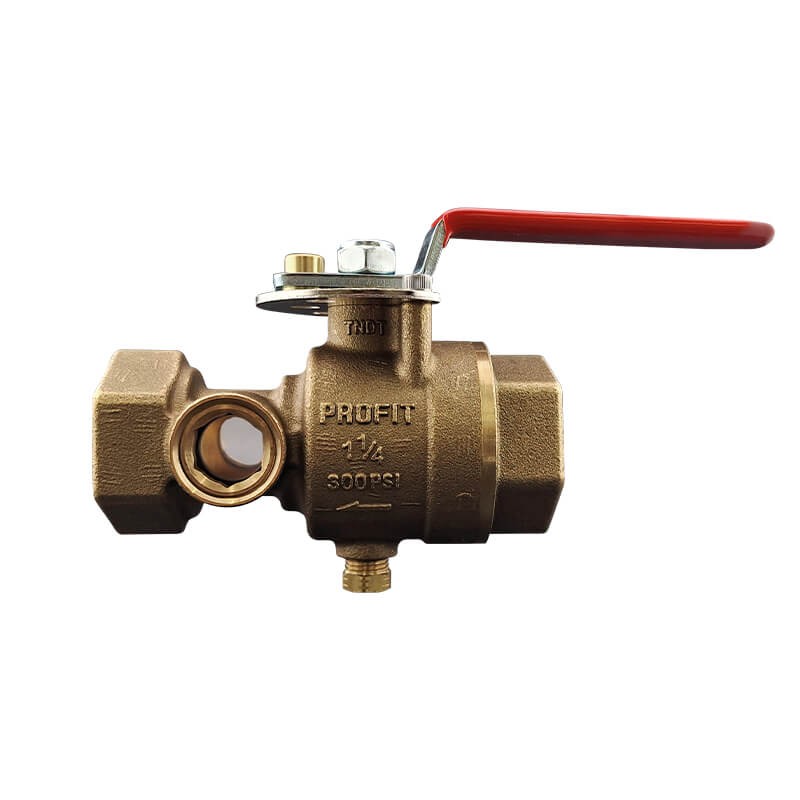

Test and drain valve

The Profit threaded test and drain valve for sprinkler systems serves two primary purposes. It allows regular testing by simulating the needed waterflow in fire conditions, and provides the possibility for controlled drainage. They are essential components for maintaining the system’s efficiency and preventing failures during a fire.

• Available sizes: DN25 - DN50 (1" – 2").
• Working pressure: 2,07 MPa / 20,7 bar / 300 psi.
• Working temperature: -10°C to +80°C.
• Can be mounted in any orientation.
• Three lever positions: Test, Drain, and Off.
• Integrated sight glass for sprinkler pipe testing purposes.
• EN 10226-1 / ISO7 Female thread BSPT.
• Opening in the indicator plate to secure the position with padlock.
• FM approved.
