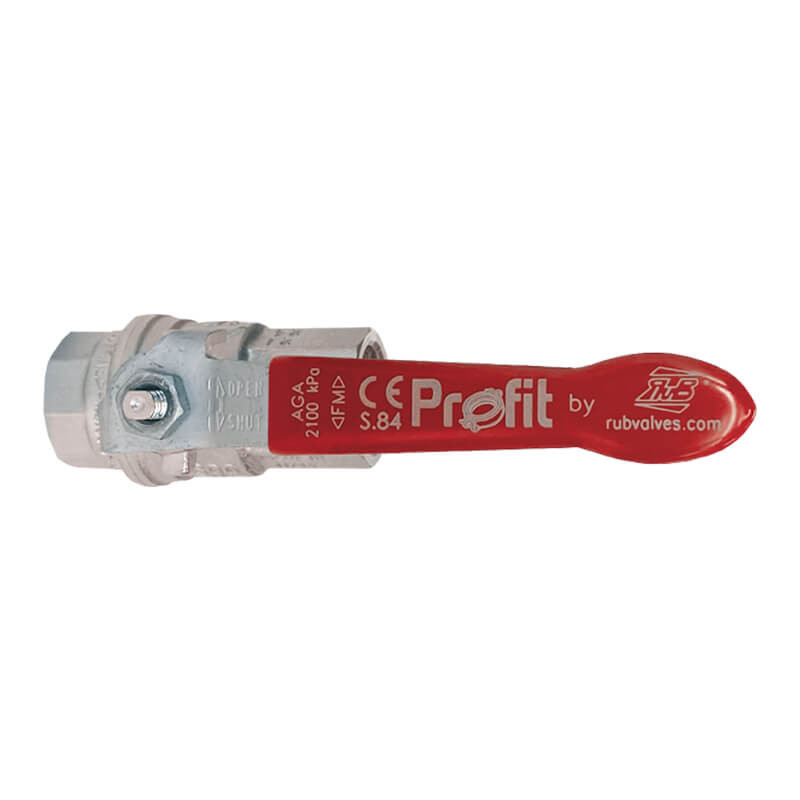

Threaded ball valve Profit by Piping Logistics THB-F ball valves
Zoom
  • Threaded ball valve Profit by Piping Logistics THB-F ball valves

FM approved threaded ball valve

Profit ball valves are high quality brass full port valves with female thread. They are used to control the flow of liquids and gases in a pipeline with the main purpose to completely shut off or to allow the flow, depending on the position of the handle.

  • Available sizes: DN8 - DN50 (1/4" – 21/2")
  • Working pressure: 40 bar (600 psi) up to 2” non-shock cold working pressure
  • Working temperature: -40°C to +170°C
  • Completely maintenance free
  • 24 hours 100% dual seal tested
  • Ball-seats with flexible PTFE lip design and greater contact surface
  • Body stops for the handle (no stress on the stem)
  • BSP threaded.
  • FM approved / CE certified
  • Except for:
    - 1/4": brass body, yellow PVC coated handle, not Profit branded, UL/FM approved (no CE approval).
    - 21/2": no FM approval.
