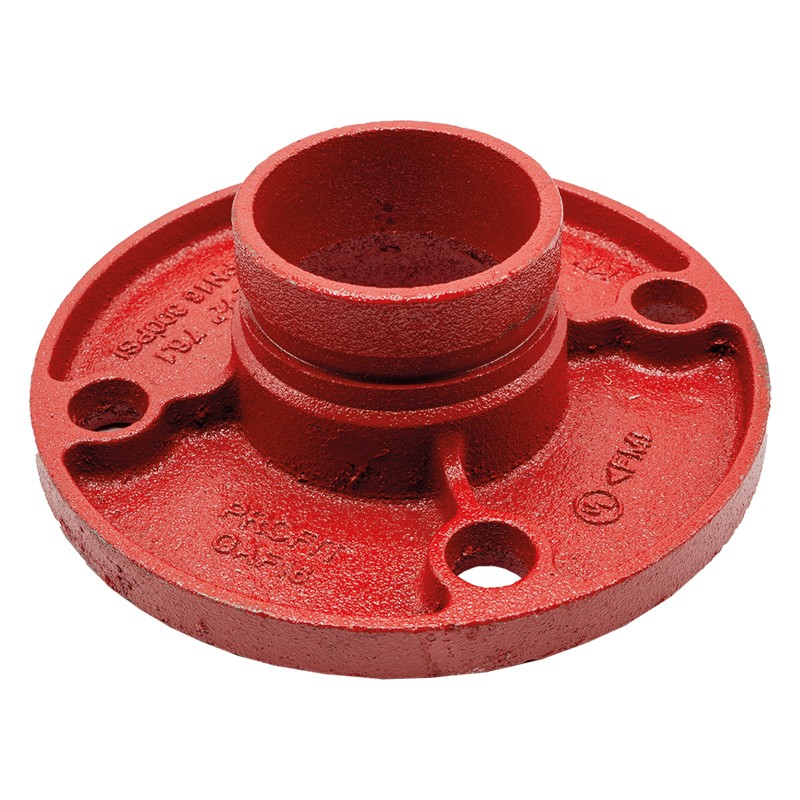

Grooved adapter flange ASME red Profit by Piping Logistics GAF150R
Zoom
  • Grooved adapter flange ASME red Profit by Piping Logistics GAF150R
  • Grooved adapter flange ASME galva Profit by Piping Logistics GAF150G

Grooved adapter flange • ASME

Grooved adapter flanges GAF150 allow the connection between flanged and grooved end equipment.

  • Available sizes: 2 – 16 inch
  • Flange drilling pattern according:
    - ASME B16.3-CLASS 150
    - ASME B16.1-CLASS 125
  • Working pressure: 2,07 MPa / 20,7 bar / 300 psi
  • UL certified / FM approved
  • Coating: red painted / galvanised

The following sizes are also available on request, in container directly from factory: 73mm / 108mm / 133mm / 159mm / 165,1mm.
