IMPROVED Butterfly valve wafer end Profit by Piping Logistics WBV butterfly valves
Zoom
  • Butterfly valve wafer end Profit by Piping Logistics WBV butterfly valves

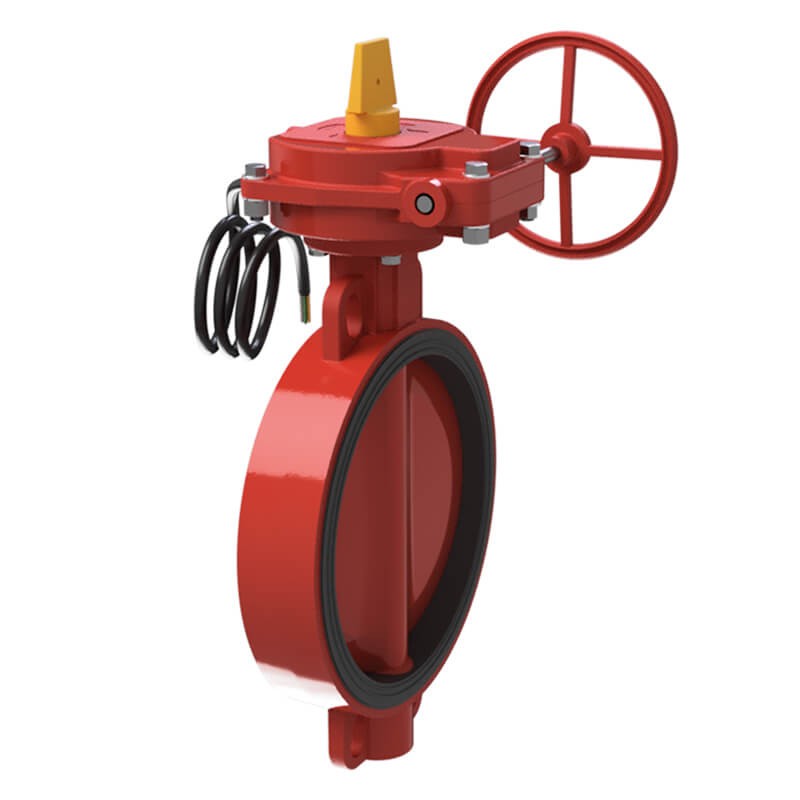

Butterfly valve wafer end

Profit butterfly valves type WBV are indicating valves with 2 built-in supervisory switches. The wafer type body has vulcanised full face rubber gaskets and is installed between flanges. The valves are designed to be used in fire protection sprinkler systems and HVAC systems.

  • Available sizes: DN50 - DN300 (2" – 12").
  • Installation between flange-types EN 1092-PN10/16.
  • Working pressure: 2,07 MPa / 20,7 bar / 300 psi.
  • Working temperature: +1°C to +80°C.
  • Protection class: IP67.
  • Built-in supervisory switches:
    - One switch to guard the open valve position.
    - Other switch to guard the closed valve position.
  • FM approved / EAC certified / UL certified.
  • Also available with CNPP approval from stock, on request.
FM Butterfly valves
EAC Certification
UL Certification
CNPP certification - Butterfly valves
