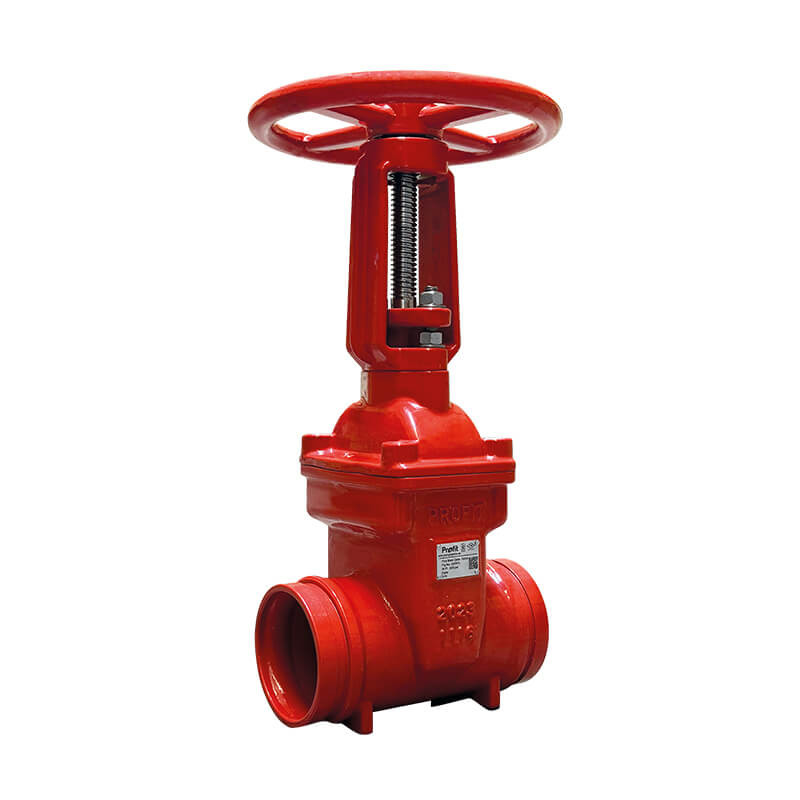

OS&Y grooved gate valve

Profit gate valves type GGOSY are resilient seated gate valves. The grooved cast iron body has a ductile iron wedge with vulcanised rubber lining. The valves are designed to be used in fire protection sprinkler systems and HVAC systems.

• Available sizes: DN50 - DN300 (2” – 12”).
• Installation with 2 grooved mechanical couplings.
• Working pressure: 20,7 barg / 300 psi.
• Working temperature: +1°C to +60°C.
• Manually operated with a handwheel.
• Suitable for use in vertical and horizontal piping.
• Pre-notched stem to accomodate an (optional) supervisory switch.
• FM approved / UL certified.

Also available: supervisory switch for OS&Y valves.
