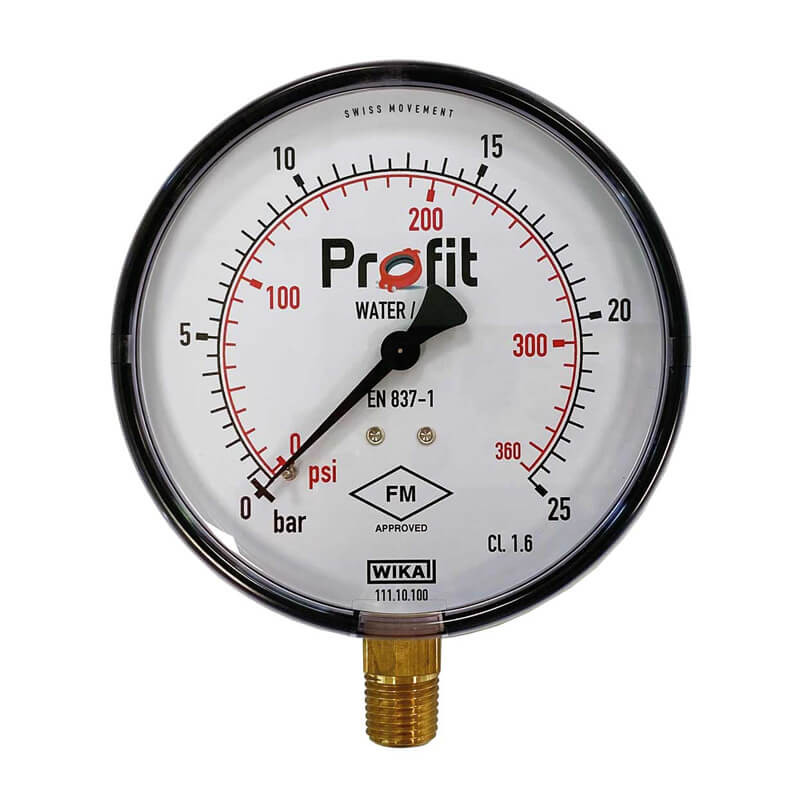

Profit Pressure Gauge
Profit pressure gauges type PG/0-25bar/FM are gauges designed and approved for use in fire sprinkler pipe systems. The model is based on the proven Bourdon tube measuring system.
Technical data:
- Can be used for medium water or air.
- Suitable for indoor and outdoor use, protection class IP44.
- Pressure element: Bourdon tube in copper alloy.
- Corrosion resistant casing.
- Dual scale 0-25bar/ 0-360 PSI.
- Including pointer stop pin.
- FM approved (WIKA 111.10.100).
- Accuracy class : class 1.6.
