Corrofit

Produkty

Superior corrosion protection for demanding environments.

Corrofit is the premium corrosion-resistant coating system developed by Piping Logistics for grooved couplings and fittings. Designed for fire protection and HVAC installations exposed to aggressive environments, Corrofit delivers exceptional durability, mechanical resistance and long-term performance.

With its advanced multi-layer protection system, Corrofit is specifically engineered to withstand tropical humidity, industrial pollution, coastal exposure,
UV radiation and insulated chilled water applications.

Built to last in the harshest conditions.

Engineered for lasting protection

Whether installed in industrial plants, coastal facilities, humid environments or demanding fire protection systems, Corrofit provides a reliable and durable solution that significantly extends the service life of your piping installation.

Maximum protection against corrosion

Corrofit uses hot dip galvanisation, advanced treatments and a UV‑resistant powder coating to deliver durable protection for grooved couplings and fittings.

Proven performance

Corrofit products have successfully
passed extensive salt spray testing and
are designed for long-term use
in highly corrosive environments.

Built for critical installations

Ideal for projects where standard painted
or galvanised products do not provide
sufficient protection.

Corrofit coating system

Ductile iron conform to ASTM A536 Grade 65-45-12 with a two-layer coated surface protection system on surfaces exposed to environmental conditions.

1. Sandblasting Sa2.5.

2. Hot dip galvanising (EN ISO 1461).

3. Intermediate surface treatment.

4. Organic cover layer:

High quality UV-resistant powder coating paint (polyester-based).
End colour: Red RAL 3000.
Applicable standard: NEN-EN 15733:2018.

Why choose Corrofit?

01 Characteristics

Higher corrosive resistance.
Better endurance in aggressive environments.
Excellent resistance against mechanical damage.

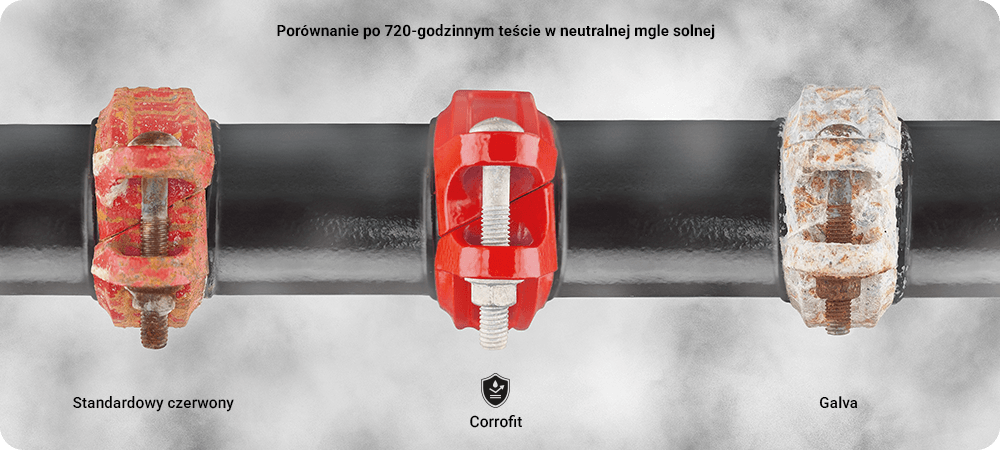

Salt Spray Test (ISO 9227/ASTM B117)

Castings: >1440 hours.
Bolts & nuts: Geomet^® >720 hours.

Exterior durability: ISO 2810 (1 year Florida exposure).

02 Intended use

The couplings & fittings can be used in the following conditions,
according to ISO 12944:

Fittings and fitting body parts with two-layer coating (1440h NSS):

Corrosivity category C4: very high durability (>25 years).
Corrosivity category C5: high durability (15-25 years).

Geomet^® bolts & nuts (720h NSS):

Corrosivity category C4: high durability (15-25 years).
Corrosivity category C5: medium durability (7-15 years).

Recommended applications

Corrofit is specifically designed for installations exposed to demanding environmental conditions.

Industrial facilities and production plants.
Coastal environments with high pollution levels.
Tropical and humid climates.
Insulated chilled water systems.
Architecturally visible installations.

Available products

FitproGR

Size range 11/4” up to 4”.

GKAGR

Size range 1” up to 12”.

GTGR

Size range 1” up to 12”.

GB90GR

Size range 1” up to 12”.

GB45GR

Size range 1” up to 12”.

Geomet^® bolts and nuts

Geomet^® bolts, nuts & R-spacers

For even better corrosion protection, the bolts and nuts of our Corrofit couplings are coated with Geomet^®, a high-performance finish that prevents rust and extends the life-span of your system. With 720+ hours of salt spray resistance, Geomet^® ensures your bolts and nuts stay strong, even in extreme conditions.
