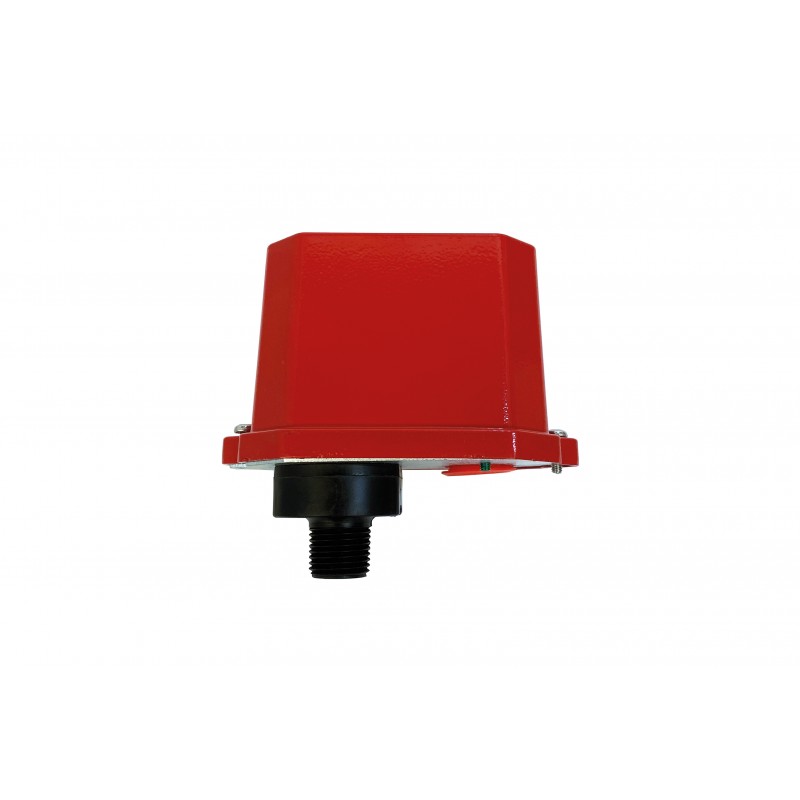

Pressure switch

The PRS10/2 pressure switch is used for the detection of water pressure in fire sprinkler & HVAC piping systems. The switch can be used in the full range of our wet alarm valves 2” up to 12“.

  • Working temperature: -40°C to 60°C
  • Pressure range: 0,27-1,38 bar (4-20 PSI)
  • UL / ULC listed and FM approved
  • Aluminum die cast cover, red painted
  • Zinc plated steel base
